Magnetic Wheels FZW160 For Crawler
Description
Reviews

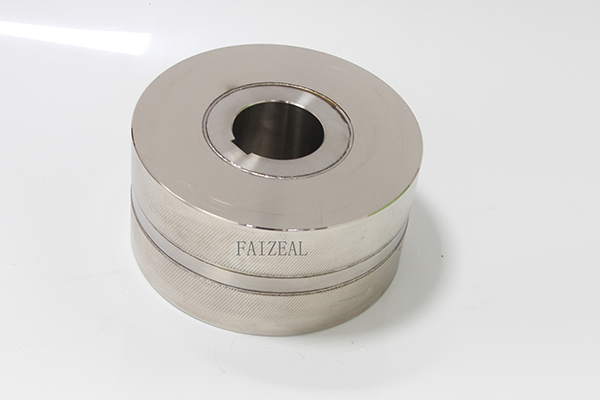

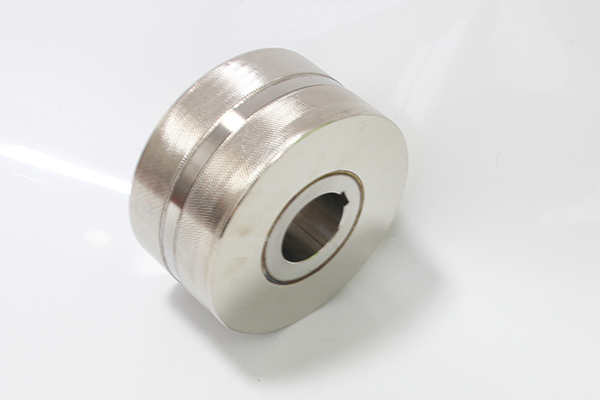

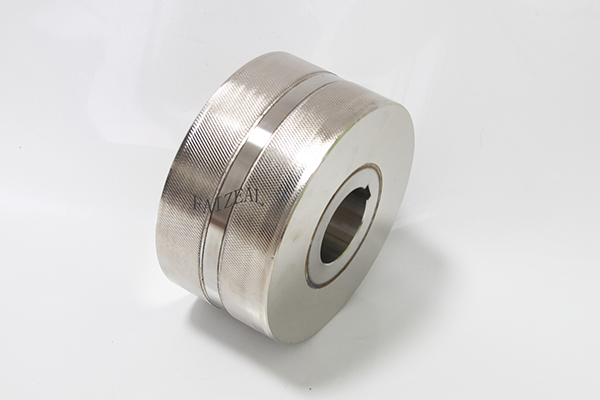

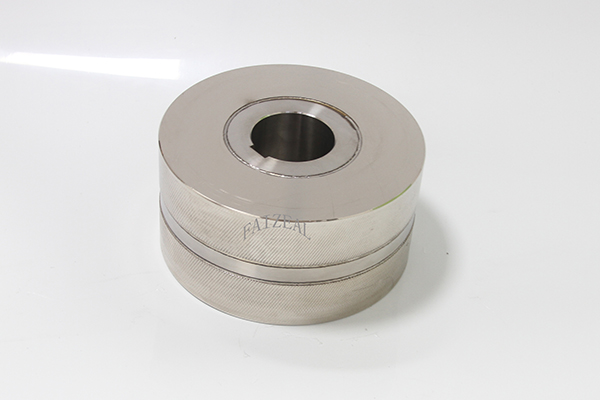

Magnetic Drive Wheel for Wall Climbing Robot
Size: FZW160, D160-d50xW80mm
Force: 2940N
Weight: 11.40kgs/each for FZW160
Application: Wall climbing robot
Description
Magnetic wall and ceiling climbing robots have been proposed in many industrial applications where robots must move over ferromagnetic material surfaces. The magnetic circuit design with magnetic attractive force calculation of permanent magnetic wheel plays an important role which significantly affects the system reliability, payload ability and power consumption of the robot. This wall climbing robot with four permanent magnetic wheels is proposed to climb along the vertical wall and overhead ceiling of steel cargo containers as part of an illegal contraband inspection system. The permanent magnetic wheels are designed to apply to the wall and ceiling climbing robot.
Application
1. ship hull inspection
2. majority of non-destructive testing such as on oil and gas pipelines, large metal
OEM
Normally for short-term exposure to corroding influences – NdFeB is the choice of material. FAIZEAL can add welding lines to prevent magnet from being corroded by salt water. we also accept OEM for the magnetic wheels. Pls supply us the following information for us:
1.What pull force and weight do you want?
2.What diameter and height?
3. Application? Such as use this magnetic wheel in the seawater, so we need to prevent the magnet from corrosion.
4. With knurling or without knurling? Knurling could increase the roughness.
More Choice As Follow
