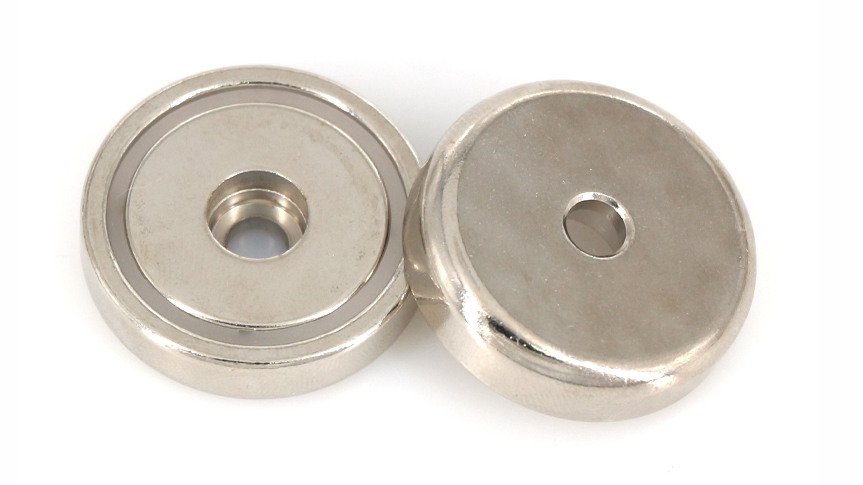

Counterbore Hole Neodymium Pot Magnets
Model D(mm) d(mm) d1(mm) H(mm) weight(g)  force(kgf)
CUP-B12 12 3.5 6.5 4.5 4 2
CUP-B16 16 3.5 6.5 5 7 5
CUP-B20 20 4.5 8 7 13 10
CUP-B25 25 5.5 9 8 19 20
CUP-B32 32 5.5 9 8 38 30
CUP-B36 36 6.5 11 8 48 40
CUP-B42 42 6.5 11 8.6 70 60
CUP-B48 48 8.5 15 11 115 70
CUP-B55 55 8.5 15 12 190 90
CUP-B60 60 8.5 15 15 240 150
CUP-B70 70 10.5 18 17 430 180
CUP-B75 75 10.5 18 18 515 220
CUP-B80 80 10.5 18 18 641 240
CUP-B90 90 10.5 18 18 800 310
CUP-B120 120 12.5 25 18 1380 420

Powerful Holding

The pot magnets of FAIZEAL has
powerfull holding for using. It made
if strong neodymium magnets in pot
magnets. Unbeliveable holding for the
size.

Very Durable

Neodymium magnet it has the characteristic of breakability. But this design of pot magnets will not break
by use the steel cups which greatly
increase the longevity of the magnets.

Cost Performance

This design of pot magnets has higher cost performance than normal magnets. It also has power holding with lower price. Accept OEM, if you have any customized design to do. Just contact with us.

Pot Magnets Cross Section

Pot magnets must come into contact with the Steel plate surface to show its full holding power potential. If there is any obstruction between the magnet and the steel target, like even a thin wood veneer, the holding power can be greatly reduced, also the connection should be even across the entire diameter of the magnets base, avoiding high spots like weld seams, screw heads or rivets where possible.
