OEM NdFeB Halbach array motor rotor
Concentrated Flux, Low Cogging, High Torque Density
This is a custom Halbach array permanent magnet rotor built for a racing-simulator direct-drive wheelbase. It is a segmented, multi-pole NdFeB ring wrapped in Kapton polyimide insulation, integrated with a precision-machined metal hub, and balanced as a finished rotor ready to drop onto a motor shaft. Halbach geometry concentrates the magnetic field on the air-gap side and self-shields it on the back-iron side — the result is a rotor that delivers higher torque density, lower cogging, and cleaner back-EMF than an equivalent surface-mounted or interior PM rotor in the same envelope.
We do not ship catalog rotor kits for racing simulators. Every build is matched to your stator, your slot count, your pole count, your air gap, your torque target, and your back-EMF spec. You tell us the simulator wheelbase you are building, the motor topology you have, or the torque and cogging targets you need to hit; we back-propose a rotor with a single magnetic-circuit report, a single field map, and a single balance certificate you can hand straight to your motor-assembly line.
A racing simulator wheelbase is a high-torque, low-speed, direct-drive servo. The driver feels every Newton-meter of force feedback through the rim, and the motor has to deliver that torque with very low cogging, very low torque ripple, and very high fidelity across thousands of hours of sim use. The rotor is the part that determines whether that motor feels like a real car or feels like a toy.
A Halbach array does three things for a sim racing rotor that a conventional surface-mounted or interior PM rotor cannot do as well:
• Concentrates flux on the air-gap side: with the right segment count and magnetization direction, a Halbach rotor puts 30-50% more flux density across the air gap than an equivalent surface-mounted rotor. More flux in the gap means more torque per ampere of stator current
• Self-shields the back-iron side: the field on the outer (back-iron) side of a Halbach rotor is nearly zero. No back-iron shielding, no flux leakage, no eddy-current heating in the surrounding structure
• Removes the back-iron saturation limit: with no significant field on the back-iron side, the hub can be sized for mechanical rigidity and balance, not magnetic saturation. The rotor can be smaller, lighter, and stiffer than a conventional rotor of the same torque rating
For a sim racing wheelbase, the practical result is sharper force feedback, cleaner detents, more usable torque per ampere, and a rotor that holds its performance over a long service life at high duty cycle. Halbach is the rotor geometry of choice for premium direct-drive sim wheels, and we build Halbach rotors for that market every day.

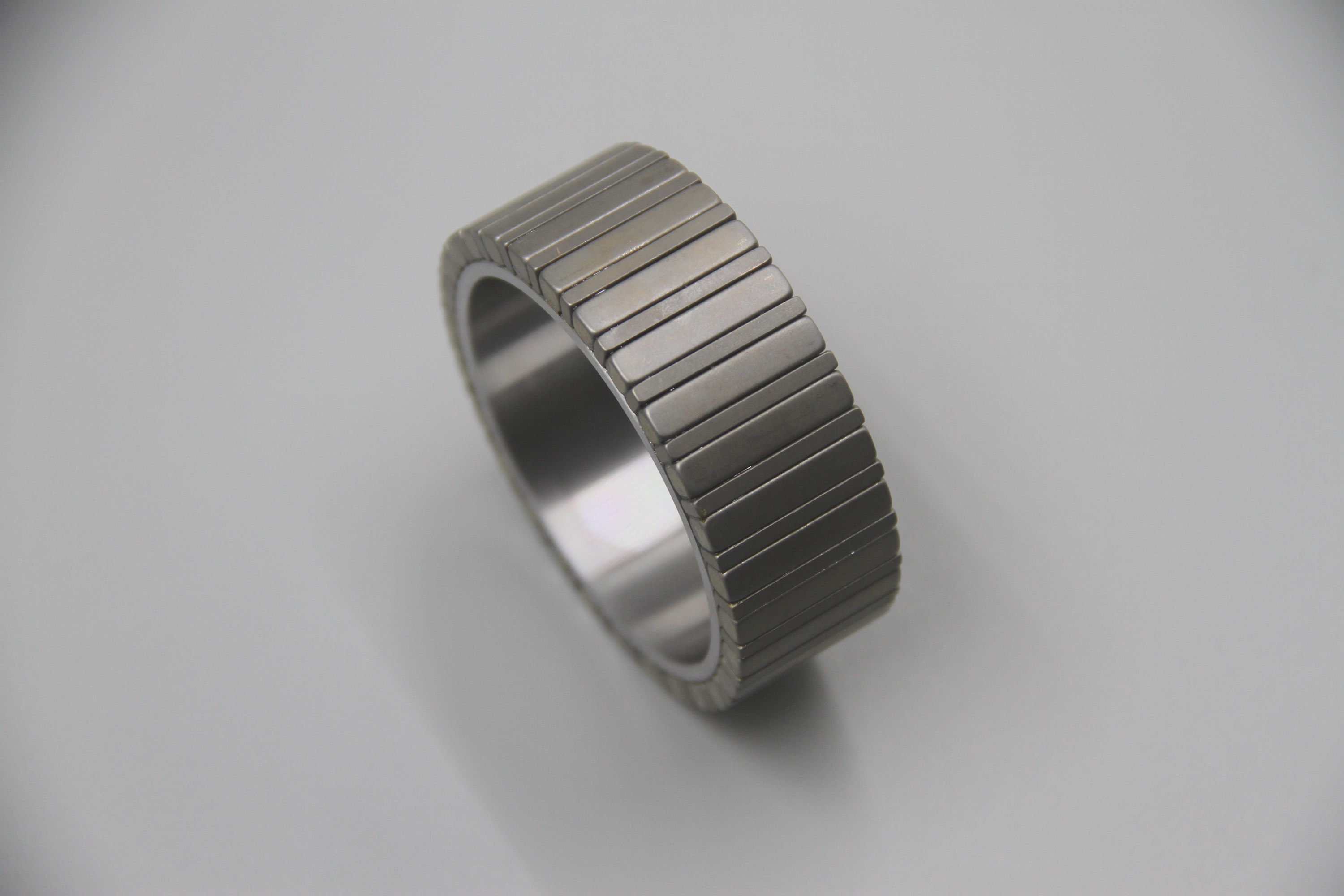

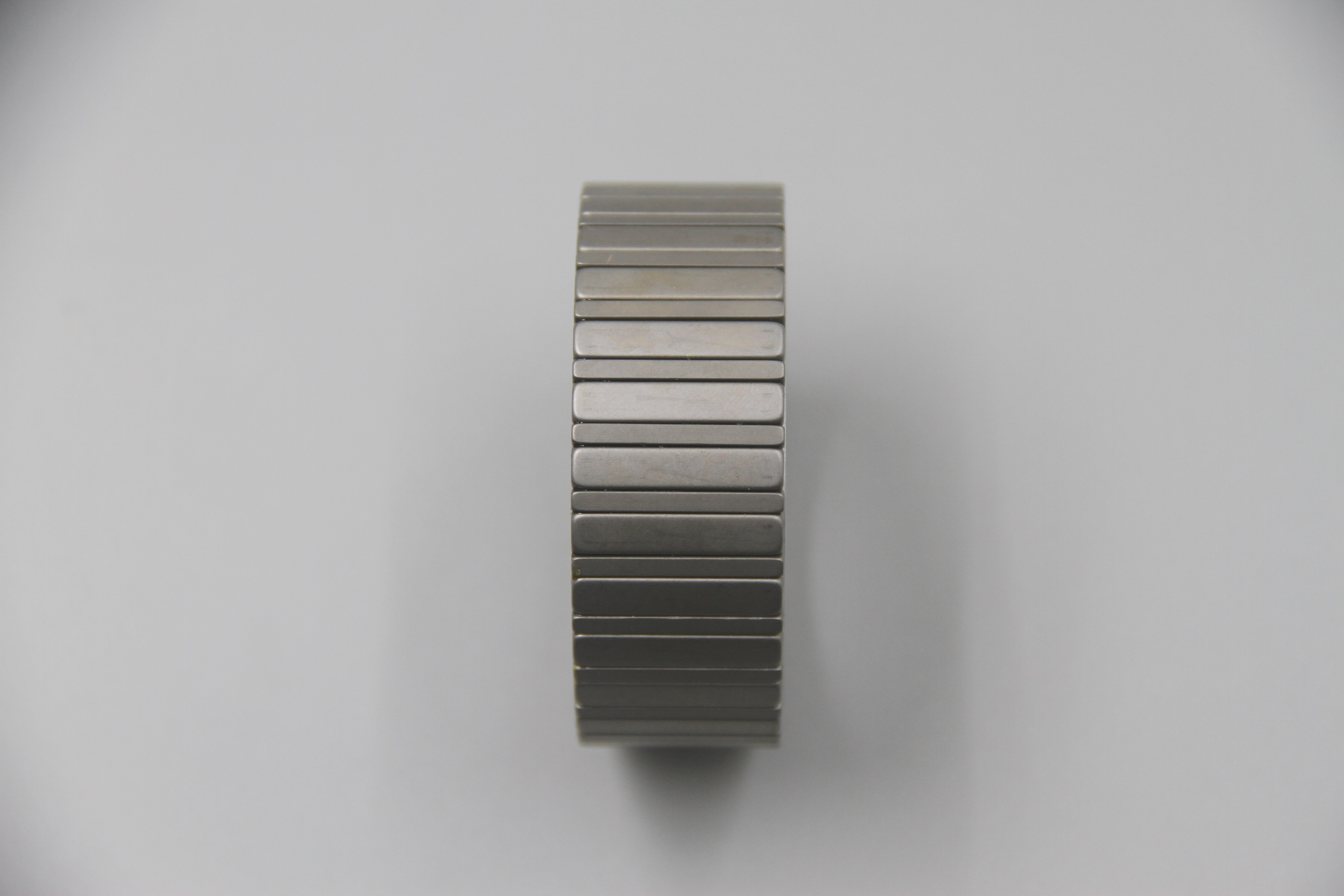

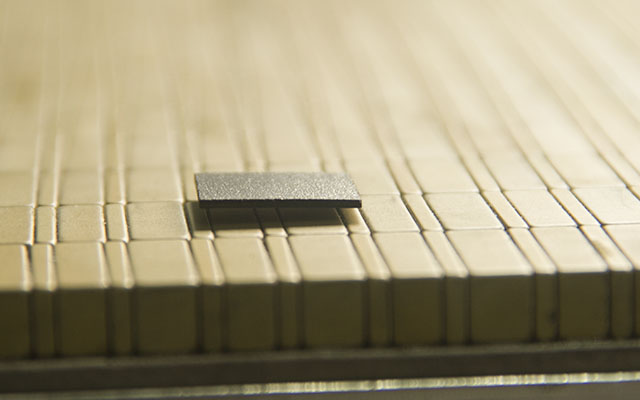

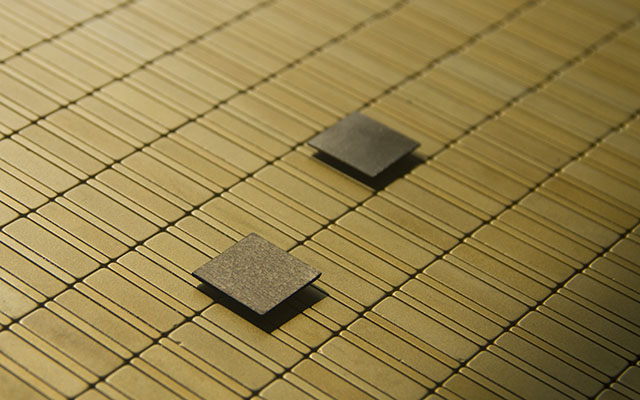

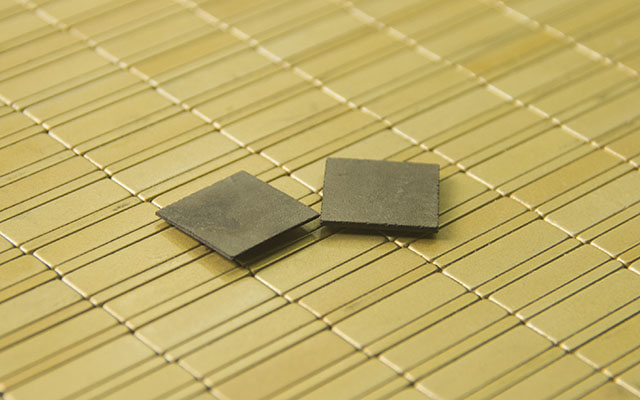

The rotor is built from independent arc-segment magnet tiles, not a continuous magnet ring. Every tile is magnetized in its own optimal direction and held in position on the back-iron hub with a controlled gap pattern. The build is segmented, not monolithic. This is a deliberate engineering choice.
• Each tile is magnetized in its own optimal direction — the magnetization angle is controlled to within a few degrees per tile, which is what makes the Halbach field pattern work in the first place. A continuous ring cannot be magnetized this way
• Small tile volume means low eddy-current loss at high speed — a continuous magnet ring has a single large eddy-current loop; segmented tiles break the loop into small pieces, reducing AC loss
• Single-tile defects do not propagate — if one tile is ever damaged in service, the rest of the rotor holds. A continuous ring fails as a ring. The reliability model is fundamentally different
• The gaps between tiles form natural cooling channels — air or oil can flow between the segments, carrying heat away from the magnet surface and into the hub
• Field tuning is per-tile — for a Halbach rotor, the tile-by-tile magnetization angle is the tuning knob for cogging, back-EMF harmonics, and torque ripple. We tune per tile, not per ring
This is what a real Halbach rotor looks like. The visible segmentation is not cosmetic. It is the manufacturing strategy that makes the field pattern possible.

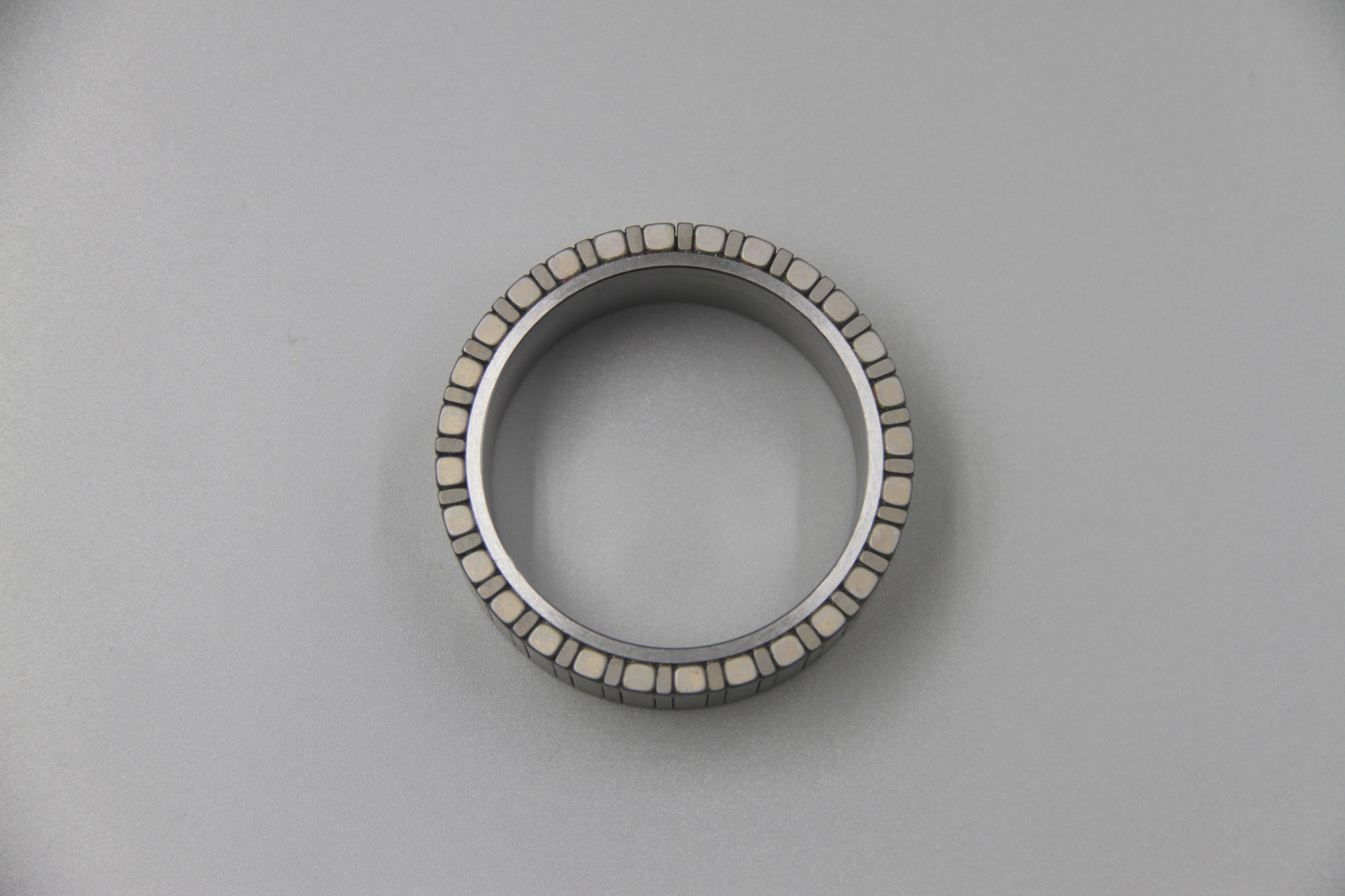

The magnet tiles are laid out around the circumference in a multi-pole Halbach pattern. Pole count and pole-arc coefficient are matched to your specific motor topology, stator slot count, and winding layout. We do not pick a default pole count; we back-propose the pole count and tile geometry that hit your torque, cogging, and back-EMF targets in your specific stator.
• Low pole counts (4 / 6 / 8 / 10) for high-speed direct-drive servos with high mechanical speed
• High pole counts (16 / 20 / 24 / 32) for high-torque, low-speed direct-drive wheelbases where cogging must be aggressively suppressed
• Custom pole counts (any integer) for non-standard motor topologies — including axial-flux, transverse-flux, and slotless stators
• Pole-arc coefficient tuned to your winding distribution — the right coefficient lowers back-EMF harmonic distortion and reduces cogging torque
• Skewed magnetization, chamfered tile edges, and arc-width adjustments available as cogging-optimization tools — we routinely push cogging down to 1-3% of rated torque
You tell us your stator slot count, your slot/pole combination, your air gap, and your torque target. We return a recommended pole count, tile geometry, and field map that fits your motor.
The entire outer surface of the rotor — every tile, every gap, every edge — is wrapped in a Kapton polyimide film. This is not cosmetic. It is a functional layer that does three jobs at once.
• Electrical insulation — Kapton is rated to several kV and prevents the magnet surface from accidentally shorting to the stator winding if a winding fault ever occurs. A faulted stator can deliver thousands of amps into the rotor surface in milliseconds; Kapton is the dielectric barrier that holds
• Surface finish — Kapton delivers a clean, smooth, low-friction outer surface. This reduces windage loss at high speed and reduces the risk of mechanical damage during motor assembly and service
• Thermal protection — combined with our high-temperature, non-outgassing adhesive system, the Kapton wrap forms a complete thermal protection envelope. The magnets are bonded and insulated, not just potted
For a sim racing rotor that runs at high duty cycle for thousands of hours, the insulation layer is the difference between a rotor that holds its balance and a rotor that delaminates after a year. We do not ship rotors without it.
The magnet array is integrated into a precision-machined metal hub. The hub does three things: it carries the magnet tiles, it provides the rotor's structural rigidity, and it provides the balance reference for the finished rotor. The hub is not a separate part glued on later. It is the structural backbone of the rotor.
• Customer-specified inner bore — press-fit, keyed (DIN 6885 / ANSI B17.1), splined, threaded, or with a proprietary lock feature. We machine the bore to your motor shaft drawing
• End-face options for flange mount, axial clamp, or through-shaft designs — including interference-fit bores for permanent-mount rotor-to-shaft assemblies
• Hub material: 10 / 20 / 1010 / 1020 carbon steel (standard); 316L or 17-4PH stainless (for corrosive or marine-rated service); titanium Gr2 (for weight-critical applications)
• Dynamic balance to ISO 1940 G2.5 / G6.3 — every rotor is balanced as a finished assembly on our in-house balancer before shipment, with a balance certificate per serial number
The rotor ships balanced, with the inner bore ready for direct assembly onto your motor shaft. No further machining, no further balancing. Drop it on the shaft, lock it to your spec, and ship the motor.
In a conventional surface-mounted PM rotor, the magnets are magnetized radially, and a steel back-iron is needed behind them to close the magnetic loop. The back-iron is large, heavy, and it limits the rotor's torque density because the steel saturates.
In a Halbach rotor, the magnetization direction rotates around the circumference. Some tiles point radially out, some point tangentially, and the field pattern that results is a self-shielded, concentrated-flux field on the inside (air-gap) side of the ring. The back-iron side has nearly zero field. The steel hub can be much thinner, the rotor can be smaller, and the field in the air gap is significantly stronger than an equivalent radial-magnet rotor.
The engineering decisions that matter for a Halbach rotor are made before the first tile is magnetized:
• Segment count per pole: 3 / 5 / 7 / 9 segments per pole determines how closely the field approximates the ideal Halbach distribution. More segments means a cleaner field pattern, but more assembly cost and more eddy-current loss
• Magnetization angle control: each tile's magnetization direction is controlled to within a few degrees. Off-angle tiles distort the field and increase cogging
• Back-iron (hub) thickness: the hub behind the magnets is the rotor's structural backbone. It must be thick enough to be rigid and provide a balance reference, but thin enough to keep the rotor light and the air gap small
• Air-gap budget: the gap between the magnet and the stator is the single biggest variable in torque. We design the rotor and the stator stack together to hit your actual gap, not a nominal zero
• Skewed magnetization: rotating the magnetization direction by a small angle from one end of the rotor to the other (a skew) is one of the most effective tools for cogging reduction
• Cogging optimization: chamfered tile edges, arc-width adjustments, and tile-to-tile gap variation are the other tools. We routinely push cogging below 3% of rated torque
For sim racing, the practical engineering target is: high torque density for sharp force feedback, low cogging for clean detents, and a rotor that holds its performance over thousands of hours of high-duty-cycle use. The Halbach geometry, the segmented construction, and the Kapton wrap are what make all three of those targets simultaneously achievable.

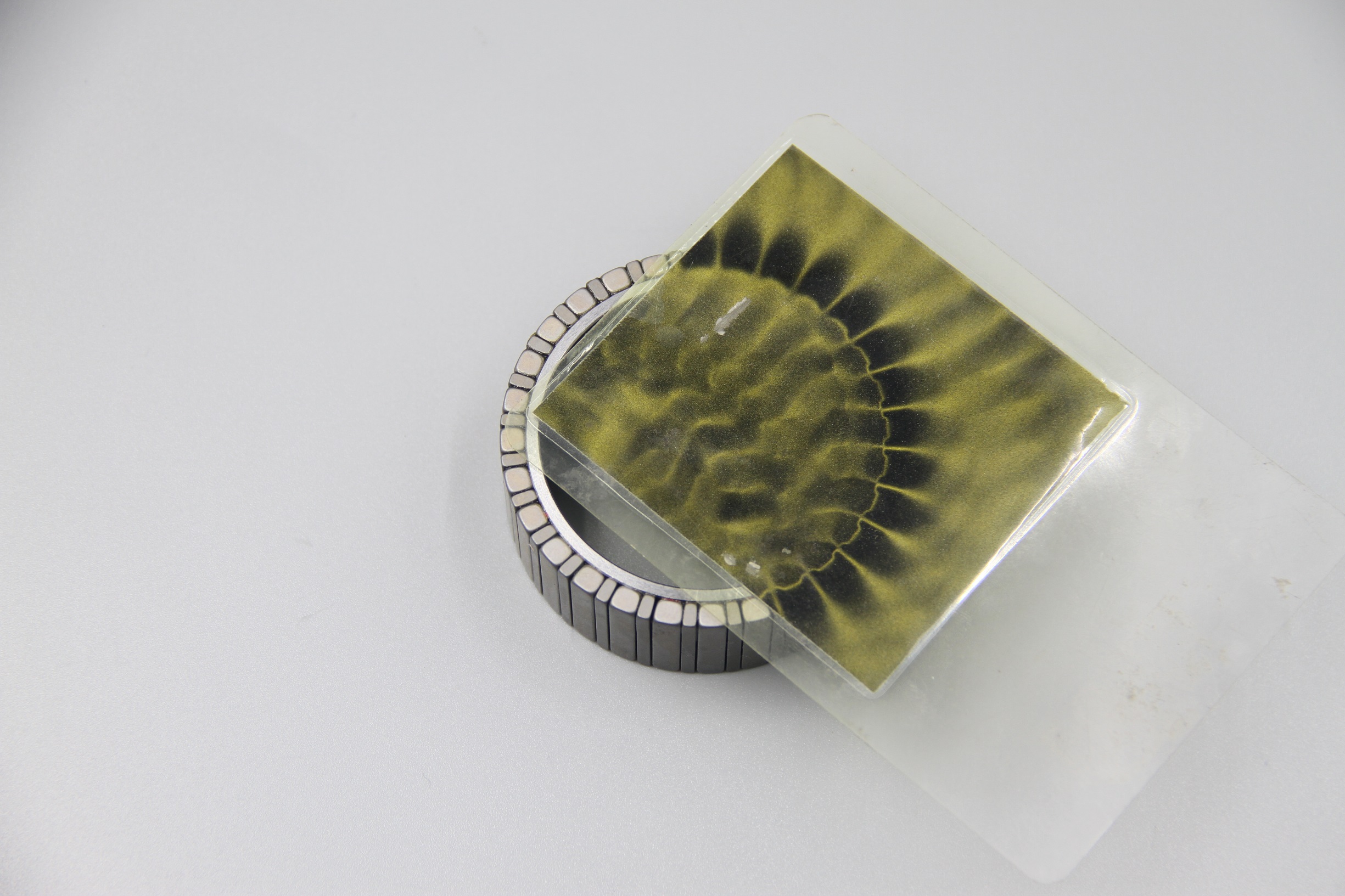

A Halbach array rotor is a permanent magnet rotor in which the magnetization direction rotates around the circumference of the ring. The result is a self-shielded, concentrated-flux field on the inside (air-gap) side of the ring, and nearly zero field on the back-iron side. For racing simulators, the Halbach geometry delivers higher torque density, lower cogging, and cleaner back-EMF than an equivalent surface-mounted or interior PM rotor in the same envelope. The result is sharper force feedback, cleaner detents, more usable torque per ampere, and a rotor that holds its performance over thousands of hours of sim use. Halbach is the rotor geometry of choice for premium direct-drive sim wheels.
Segmented magnet construction means the rotor is built from independent arc-segment magnet tiles, not a continuous magnet ring. Every tile is magnetized in its own optimal direction. The benefits are: (1) per-tile magnetization angle control, which is what makes the Halbach field pattern work; (2) lower eddy-current loss at high speed because the small tile volume breaks the eddy-current loop; (3) single-tile defects do not propagate, which changes the reliability model; (4) the gaps between tiles form natural cooling channels; and (5) field tuning is per-tile, which is how we control cogging and back-EMF harmonics. The visible segmentation on a real Halbach rotor is not cosmetic. It is the manufacturing strategy that makes the field pattern possible.
Multi-pole magnetic layout means the magnet tiles are arranged around the circumference in a multi-pole pattern, with the pole count and pole-arc coefficient matched to the specific motor topology. Low pole counts (4 / 6 / 8 / 10) suit high-speed direct-drive servos; high pole counts (16 / 20 / 24 / 32) suit high-torque, low-speed direct-drive wheelbases. The pole-arc coefficient is tuned to the winding distribution to minimize back-EMF harmonic distortion and reduce cogging. We do not pick a default pole count; we back-propose the pole count and tile geometry that hit your torque, cogging, and back-EMF targets in your specific stator.
Kapton polyimide is a high-performance insulation film rated to several kV. On a Halbach rotor, the entire outer surface — every tile, every gap, every edge — is wrapped in Kapton. It does three jobs: (1) electrical insulation — prevents the magnet surface from accidentally shorting to the stator winding in a fault condition; (2) surface finish — provides a clean, smooth, low-friction outer surface that reduces windage loss at high speed; and (3) thermal protection — combined with our high-temperature, non-outgassing adhesive system, the Kapton wrap forms a complete thermal protection envelope. We do not ship Halbach rotors without it.
The integrated metal hub is the precision-machined backbone of the rotor. It carries the magnet tiles, provides the rotor's structural rigidity, and provides the balance reference for the finished rotor. The inner bore is customer-specified: press-fit, keyed (DIN 6885 / ANSI B17.1), splined, threaded, or with a proprietary lock feature. We machine the bore to your motor shaft drawing. Hub material options include 10 / 20 / 1010 / 1020 carbon steel (standard), 316L or 17-4PH stainless (for corrosive or marine service), and titanium Gr2 (for weight-critical applications). The rotor ships balanced, with the inner bore ready for direct assembly onto your motor shaft.
On a FAIZEAL Halbach rotor, cogging is typically optimized to 1-3% of rated torque. The tools we use are: per-tile magnetization angle control, skewed magnetization (rotating the magnetization direction by a small angle from one end of the rotor to the other), chamfered tile edges, arc-width adjustments, and tile-to-tile gap variation. For high-precision sim racing applications, the cogging target is a hard specification. We tune the rotor geometry and the magnetization scheme against that target.
At the rated air gap, a FAIZEAL Halbach rotor typically delivers 0.5 T - 0.9 T peak flux density, depending on magnet grade, segment count per pole, and air gap. This is 30-50% higher than an equivalent surface-mounted PM rotor in the same envelope, and is the fundamental reason Halbach rotors deliver higher torque density in a smaller package.
Magnet: sintered Neodymium-Iron-Boron (NdFeB); N35 to N52 standard; SH / UH / EH for high-temperature and high-coercivity duty; SmCo optional for sustained operation above 200 C. Hub (back-iron): 10 / 20 / 1010 / 1020 carbon steel (standard); 316L or 17-4PH stainless for corrosive or marine service; titanium Gr2 for weight-critical applications. Insulation: Kapton polyimide film, full-wrap, with high-temperature non-outgassing adhesive. Surface treatment: Ni (NiCuNi) / Zn / epoxy / parylene / PTFE / multi-layer stack, per service environment. We do not ship rotors with unspecified materials — every alloy, every grade, and every certificate is on the BOM.
Yes. Send us your stator slot count, your slot/pole combination, your air gap, your torque target, and your cogging target. We back-propose a rotor with a recommended pole count, tile geometry, and field map that fits your motor. We routinely reverse-engineer existing rotor/motor assemblies to drop-in replacement spec.
Yes. Segmented Halbach construction is specifically designed to manage eddy-current loss at high speed. The small tile volume breaks the eddy-current loop that a continuous magnet ring would have. Combined with precision balance (ISO 1940 G2.5) and the integrated metal hub, our Halbach rotors routinely run at 20,000-30,000 rpm continuous, with higher intermittent speeds available on request.
Prototype / sample Halbach rotor: 10-20 working days after drawing freeze. Production: 20-45 working days depending on volume, material, and segment count. High-segment-count and high-cogging-suppression builds may run longer — we confirm a date at quotation. Repeat orders from a frozen design typically ship in 15-30 working days.
Yes. We offer scheduled batch-rotation stock for OEM customers, with a 5-year material and process reproducibility guarantee per fleet reference. Tell us your expected service interval and your safety stock target, and we will hold the right number of finished rotors in our bonded warehouse for call-off.
We typically return a feasibility and indicative pricing note within 2 working days, and a firm quotation within 5-7 working days.
FAIZEAL — custom Halbach array rotors for racing simulators, high torque density, low cogging, built to your motor topology.
