What is a magnetic assembly? Everything you need to know 2024

When you think of magnets, you might picture the simple fridge magnet holding up a favorite photo or note. But in the industrial world, magnets are far more than that—they’re critical components in countless applications, from electronics to heavy machinery. This is where magnet assemblies come into play. If you’re wondering what exactly a magnet assembly is, how it’s used, and why it’s so essential, you’ve come to the right place. In this guide, we’re going to break down everything you need to know about magnet assemblies, from the basics to the advanced. Ready to get started? Let’s jump in!

What is a Magnet Assembly?

At its core, a magnet assembly is a combination of magnets and other components that work together to perform a specific function. Unlike a standalone magnet, a magnet assembly is engineered to enhance the magnetic force, provide structural integrity, or focus the magnetic field in a particular direction. These assemblies can include various elements such as steel housings, plastic or rubber coatings, and even adhesives, depending on the application.

Think of a magnet assembly as a superhero team-up. While a single magnet has impressive power on its own, when combined with other materials in a magnet assembly, it becomes even more powerful and versatile. Whether it’s holding a heavy object in place, detecting metal in an industrial setting, or creating a secure closure, magnet assemblies are the unsung heroes of many operations.

Types of Magnet Assemblies

Magnet assemblies come in various shapes and forms, each designed for specific tasks. The type of magnet assembly you need depends largely on the application and the environment in which it will be used. Here’s a breakdown of some of the most common types:

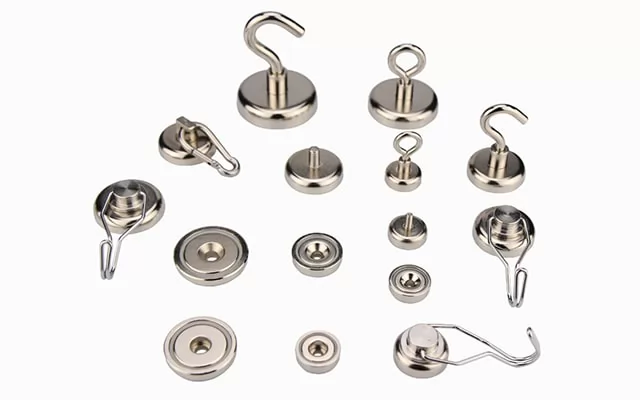

1. Pot Magnet Assemblies: These are perhaps the most versatile type of magnet assemblies. They consist of a magnet encased in a steel shell, which helps to direct and focus the magnetic field. Pot magnets are often used in holding, clamping, and mounting applications because they provide a strong magnetic force in a compact form.

2. Magnetic Hooks and Eyelets: These assemblies are perfect for hanging or suspending items. They combine a magnet with a hook or eyelet, making them ideal for storage solutions, event setups, or anywhere you need a temporary yet strong holding force.

3. Magnetic Filters: Used primarily in industrial settings, magnetic filters are designed to remove ferrous particles from liquids or powders. They typically consist of a series of magnetic bars or plates that capture unwanted metal debris as material flows past.

4. Channel Magnet Assemblies: These are designed to provide a high holding force in a small package. The magnet is embedded in a steel channel, which amplifies its strength. Channel magnets are commonly used in manufacturing and assembly processes where strong, focused magnetic force is needed.

5. Countersunk Magnet Assemblies: These are magnets with a countersunk hole that allows them to be screwed into place. They’re frequently used in fixtures, signage, and displays where a permanent yet concealed magnetic mounting is required.

Applications of Magnet Assemblies

Magnet assemblies are incredibly versatile, finding use across a wide range of industries and applications. Here are some of the key areas where these powerful tools are indispensable:

1. Industrial Automation: In factories and production lines, magnet assemblies are essential for automation. They’re used in robotic arms for precise picking and placing of metal parts, in conveyor systems for sorting, and in automated storage solutions where magnetic holding force is required.

2. Electronics and Electrical Engineering: Magnet assemblies play a crucial role in electronic devices. They’re used in sensors, speakers, and motors to convert electrical energy into mechanical motion and vice versa. For instance, the tiny magnets in your smartphone’s speakers are part of a larger magnet assembly that produces sound.

3. Automotive Industry: The automotive sector relies heavily on magnet assemblies for everything from electric vehicle motors to sensors and actuators. They’re used in anti-lock braking systems (ABS), electric power steering, and even in the latching mechanisms for doors and trunks.

4. Medical Devices: Magnet assemblies are also vital in the medical field. They’re used in MRI machines, surgical tools, and even in implants such as cochlear devices. The precision and reliability of magnet assemblies make them ideal for life-saving applications.

5. Renewable Energy: In wind turbines and solar panels, magnet assemblies are key components. For example, the magnets in wind turbine generators convert kinetic energy into electrical energy, making them a critical part of the renewable energy landscape.

6. Retail and Display: Magnet assemblies are widely used in retail for displays, signage, and fixtures. Magnetic hooks, clips, and mounting systems provide a clean, non-invasive way to set up and change displays quickly.

7. Aerospace and Defense: The aerospace and defense sectors use magnet assemblies in a variety of applications, from securing panels and hatches to guiding missiles and satellites. Their reliability and strength in extreme conditions make them a preferred choice for mission-critical tasks.

As you can see, magnet assemblies are everywhere—whether you’re in a car, a hospital, or a high-tech factory, there’s a good chance you’re benefiting from these innovative components.

How Magnet Assemblies Are Manufactured

The manufacturing process of magnet assemblies is both intricate and precise, ensuring that each assembly meets the exact specifications required for its intended application. Here’s an overview of how these assemblies are typically made:

1. Material Selection: The first step is selecting the right materials. Depending on the type of magnet assembly being produced, different types of magnets (such as neodymium, samarium-cobalt, or ceramic) are chosen. Additional materials like steel, aluminum, plastic, or rubber are also selected based on the application’s requirements.

2. Design and Prototyping: Once the materials are chosen, the design phase begins. Engineers use computer-aided design (CAD) software to create a detailed blueprint of the magnet assembly. Prototypes are often produced using 3D printing or other rapid prototyping methods to test the design’s effectiveness before full-scale production.

3. Magnetization: After the magnets are cut or molded into the desired shape, they undergo the magnetization process. This involves exposing the magnets to a strong magnetic field, which aligns their domains and makes them magnetically active. The strength and orientation of the magnetization are carefully controlled to ensure consistent performance.

4. Assembly: With the magnets and other components ready, the assembly process begins. Depending on the design, the magnet is placed within a housing or combined with other materials. The assembly is typically done using precision machinery to ensure that all parts are aligned and secured correctly.

5. Quality Control: After assembly, each unit undergoes rigorous quality control testing. This may include checking the magnetic strength, ensuring the correct orientation, and verifying that the assembly meets all dimensional tolerances. Any defects are addressed before the products are packaged.

6. Surface Treatment and Coating: For many magnet assemblies, a protective coating is applied to prevent corrosion and wear. Common coatings include nickel, epoxy, or rubber. These coatings not only enhance the durability of the assembly but also improve its performance in harsh environments.

7. Packaging and Shipping: Once the magnet assemblies pass all quality checks, they are packaged and prepared for shipping. Special care is taken to ensure that the magnetic fields do not interfere with other products during transportation.

The entire manufacturing process requires precision and expertise, as even a slight variation can affect the performance of the magnet assembly. From design to delivery, every step is crucial in creating a product that meets the high standards required by various industries.

Benefits of Using Magnet Assemblies

Magnet assemblies offer a range of advantages that make them indispensable across various industries. Here’s a look at some of the key benefits:

1. Enhanced Magnetic Strength: One of the primary benefits of a magnet assembly is the amplification of magnetic strength. By combining magnets with other materials like steel, the magnetic field is concentrated, resulting in a stronger holding force. This makes magnet assemblies far more powerful than individual magnets of the same size.

2. Versatility in Design: Magnet assemblies are highly customizable. They can be designed to fit specific applications, whether it’s a compact assembly for electronic devices or a robust structure for industrial use. The flexibility in design allows engineers to create solutions tailored to exact needs, improving efficiency and performance.

3. Durability and Longevity: Magnet assemblies are built to last. The materials used in these assemblies are chosen for their durability, with coatings that protect against corrosion, wear, and environmental factors. This longevity reduces the need for frequent replacements, saving time and costs in the long run.

4. Cost-Effectiveness: By integrating magnets into assemblies, manufacturers can often achieve the desired magnetic force with fewer materials, reducing costs. Additionally, the long lifespan and reduced maintenance of magnet assemblies contribute to overall cost savings.

5. Ease of Installation and Use: Magnet assemblies are designed for ease of use. Whether it’s a magnetic hook, a mounting system, or a complex industrial assembly, these products are straightforward to install and operate. This simplicity reduces setup time and minimizes errors during installation.

6. Safety and Reliability: In many applications, especially in the medical, aerospace, and automotive industries, safety and reliability are paramount. Magnet assemblies are engineered to perform consistently under demanding conditions, providing a reliable solution that meets strict safety standards.

7. Reduced Environmental Impact: Magnet assemblies can also be environmentally friendly. By using fewer materials and lasting longer, they contribute to resource efficiency. Additionally, many magnet assemblies are designed to be recyclable, further reducing their environmental footprint.

Factors to Consider When Selecting Magnet Assemblies

Choosing the right magnet assembly involves several considerations to ensure that it meets your specific needs. Here are some key factors to keep in mind:

1. Magnetic Strength: The primary consideration is the strength of the magnet. Depending on the application, you might need a high-strength assembly for heavy-duty tasks or a standard strength for lighter applications. Assess the required holding force and choose an assembly that meets or exceeds this requirement.

2. Size and Shape: Magnet assemblies come in various sizes and shapes. Ensure that the dimensions of the assembly fit your application’s space constraints and design requirements. Consider both the size of the magnet and any additional components or housings.

3. Material Compatibility: The materials used in the magnet assembly, including the magnet itself and any housing or coating, should be compatible with the environment in which it will be used. For example, if the assembly will be exposed to moisture, a corrosion-resistant coating is essential.

4. Temperature Tolerance: Different magnet materials have varying temperature tolerances. If the assembly will be used in extreme temperatures, make sure to select magnets and materials that can withstand these conditions without losing performance.

5. Cost vs. Performance: Balance the cost of the magnet assembly with its performance. While it might be tempting to go for the cheapest option, investing in a higher-quality assembly can offer better performance and longer life, ultimately saving money in the long run.

6. Mounting and Installation: Consider how the magnet assembly will be mounted and installed. Some assemblies come with built-in mounting features, while others may require additional components or hardware. Ensure that the assembly can be easily integrated into your setup.

7. Regulatory Compliance: For certain industries, such as medical or aerospace, there may be regulatory standards that the magnet assembly needs to meet. Verify that the assembly complies with any relevant certifications or standards.

Choosing the right magnet assembly involves careful consideration of these factors to ensure optimal performance and reliability for your specific application.

Common Challenges in Magnet Assembly

While magnet assemblies are highly effective, they can come with their own set of challenges. Here are some common issues and how to address them:

1. Magnetic Interference: One challenge is dealing with magnetic interference from other nearby magnets or electronic devices. To minimize interference, ensure proper shielding and spacing between magnets, and use assemblies designed to handle such issues.

2. Alignment Issues: Proper alignment of the magnet within the assembly is crucial for optimal performance. Misalignment can reduce the magnetic force or affect the assembly's functionality. Precision during manufacturing and installation can help prevent these issues.

3. Environmental Factors: Exposure to harsh environmental conditions, such as extreme temperatures or corrosive substances, can impact the performance of magnet assemblies. Choose assemblies with appropriate coatings and materials to withstand these conditions.

4. Wear and Tear: Over time, magnet assemblies can experience wear and tear, especially in high-use applications. Regular maintenance and inspection can help identify and address issues before they become significant problems.

5. Cost Management: Balancing cost with quality can be a challenge. It’s important to find a magnet assembly that meets your performance needs without exceeding your budget. Consider long-term benefits and potential cost savings from investing in higher-quality assemblies.

Maintenance and Care of Magnet Assemblies

Proper maintenance and care are essential to prolong the lifespan and performance of magnet assemblies. Here are some tips for keeping them in top condition:

1. Regular Cleaning: Keep magnet assemblies clean to prevent debris and contaminants from affecting their performance. Use a soft cloth and non-abrasive cleaning agents to wipe down the surfaces. Avoid harsh chemicals that could damage coatings.

2. Inspect for Damage: Periodically inspect magnet assemblies for signs of wear or damage. Check for cracks, corrosion, or any other issues that could impact performance. Address any problems promptly to avoid further damage.

3. Proper Storage: When not in use, store magnet assemblies in a dry, controlled environment. Avoid exposing them to extreme temperatures or moisture, as these conditions can degrade the materials and affect magnetic strength.

4. Avoid Overloading: Ensure that the magnet assembly is used within its specified limits. Overloading or applying excessive force can lead to reduced performance or damage. Follow manufacturer guidelines for safe usage.

5. Check Alignment: Regularly verify that the magnets are properly aligned within the assembly. Misalignment can lead to reduced effectiveness and potential operational issues.

Future Trends in Magnet Assemblies

As technology advances, the field of magnet assemblies is evolving. Here are some future trends to watch for:

1. Smart Magnets: The integration of sensors and smart technology with magnet assemblies is on the rise. These smart magnets can provide real-time data on their performance, condition, and surrounding environment, enhancing their functionality and application versatility.

2. Enhanced Materials: Research is ongoing to develop new materials that offer improved magnetic properties, durability, and environmental resistance. Advances in materials science could lead to stronger, more efficient magnet assemblies.

3. Miniaturization: The trend toward miniaturization continues, with a focus on creating smaller, more compact magnet assemblies that deliver high performance. This is particularly relevant for electronics and medical applications where space is limited.

4. Sustainability: There is a growing emphasis on sustainability and eco-friendliness in magnet assembly manufacturing. Efforts are being made to use recyclable materials, reduce waste, and improve energy efficiency in production processes.

5. Customization and Personalization: The demand for customized and personalized magnet assemblies is increasing. Manufacturers are offering more tailored solutions to meet specific needs, driven by advancements in manufacturing technologies and design capabilities.

Staying abreast of these trends can help you leverage the latest innovations and advancements in magnet assembly technology.

FAQs About Magnet Assemblies

1. What is the difference between a magnet and a magnet assembly?

   • A single magnet is a standalone component, while a magnet assembly combines one or more magnets with additional materials or components to enhance its functionality and performance.

2. How do I know which type of magnet assembly to use?

   • The choice depends on your specific application requirements, including magnetic strength, size, environmental conditions, and mounting needs. Consult with a manufacturer or specialist to determine the best option.

3. Can magnet assemblies be customized?

   • Yes, many manufacturers offer customization options to tailor magnet assemblies to specific applications. This can include adjusting size, shape, magnetic strength, and materials.

4. How can I maintain my magnet assemblies?

   • Regular cleaning, proper storage, inspecting for damage, and avoiding overloading are key to maintaining magnet assemblies.

5. Are there any environmental concerns with magnet assemblies?

   • Most magnet assemblies are designed with environmental considerations in mind, including using recyclable materials and minimizing waste. However, it’s important to follow proper disposal and recycling practices.

Conclusion

Understanding magnet assemblies and their applications is crucial for selecting the right components for your needs. From their various types and manufacturing processes to their benefits and future trends, magnet assemblies play a pivotal role in numerous industries. By considering factors such as magnetic strength, material compatibility, and maintenance, you can make informed decisions and leverage the full potential of these versatile components.

As technology continues to evolve, staying updated on advancements will help you harness the latest innovations in magnet assembly technology. Whether you’re working on industrial automation, electronics, or any other application, magnet assemblies are a key element in achieving optimal performance and efficiency.
